    System Design with News Feed Use Case

    Authored on June 27, 2025 by Aaron Christopher.

    4 min read
    --- views

    Building a Real-Time Feed System (From Frontend to Backend)

    How I accidentally designed a fullstack micro-architecture just to push new posts to the top.

    🧠 Background

    What started as a simple frontend project to display posts in a feed turned into an unexpected journey into system design. I wanted one thing: when a new post is made, users should see a “🔄 New posts available” button, just like Twitter.

    The simplest idea? Polling. The better idea? Server-Sent Events. The fun idea? Let's architect a real-time event-driven system with RabbitMQ.

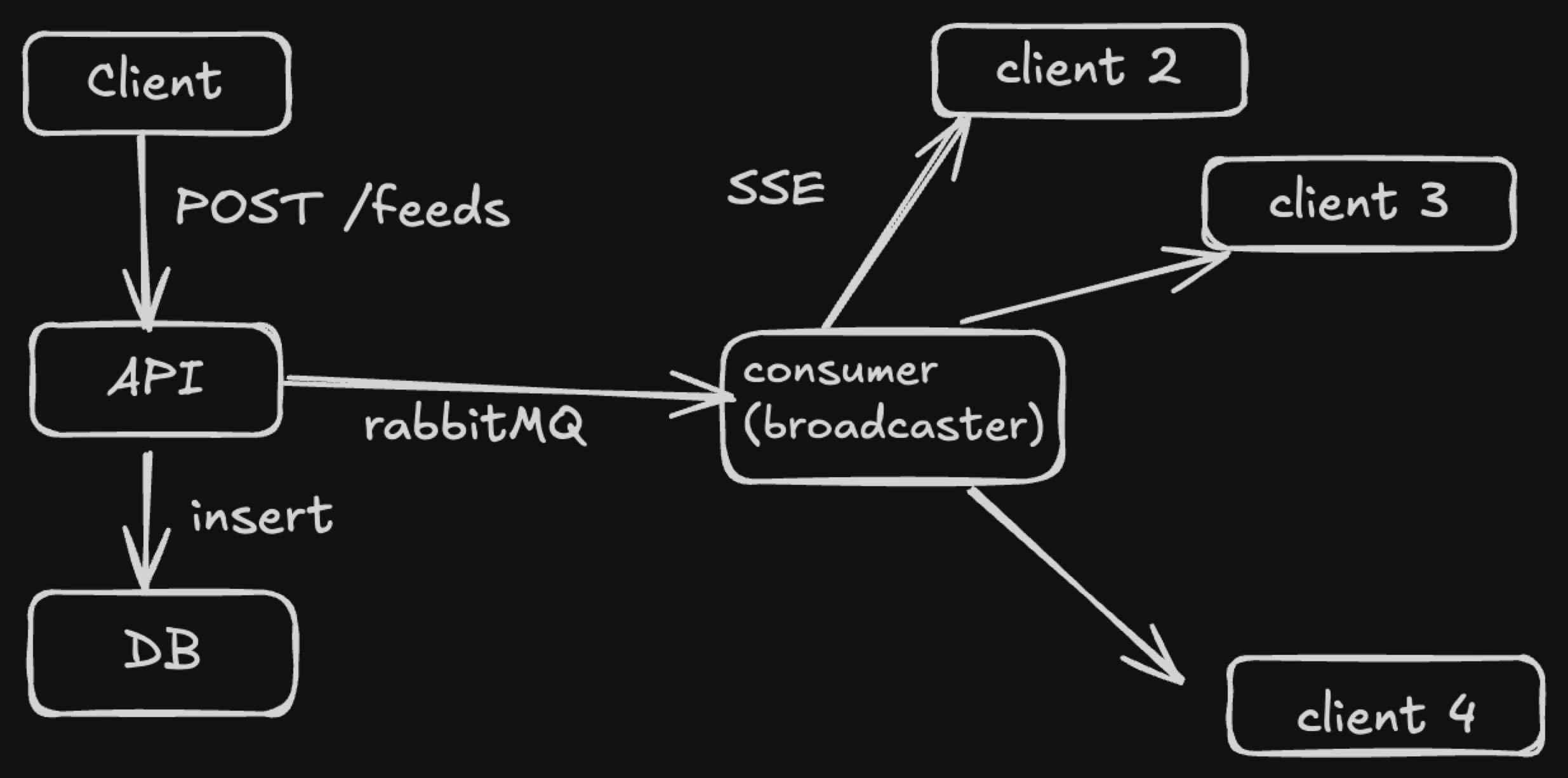

    🏗️ Overview of the Architecture

    news feed architecture

    Let's walk through what happens when someone posts a feed item:

    1. Client sends a POST /feeds request.
    2. API inserts into PostgreSQL and publishes an event to RabbitMQ.
    3. A separate consumer service picks up that event and broadcasts it via Server-Sent Events (SSE) to connected clients.

    It's decoupled, real-time, and scalable. Here's how I built it.

    🧩 Tech Stack

    • Frontend: Next.js (App Router), TanStack Query, Tailwind, shadcn/ui
    • Backend API: Go + net/http
    • Database: PostgreSQL
    • Event Queue: RabbitMQ
    • Real-time Layer: Server-Sent Events (SSE)
    • Infra: Docker (RabbitMQ, Postgres)

    🔧 Feed Insertion Flow

    API (Go) handles POST /feeds, inserts into the DB, and publishes a FeedCreated event to RabbitMQ:

    _ = queue.PublishFeedCreated(queue.FeedEvent{ ID: feedID, Content: req.Content, Author: req.AuthorID, Time: createdAt.Unix(), })
    go

    This decouples DB writes from broadcasting logic.

    📨 Event Broadcasting with RabbitMQ + SSE

    A separate consumer service listens to the feed.created queue and uses an in-memory SSE pool to push to all connected clients:

    // Simplified func ConsumeAndBroadcast() { for msg := range rabbitmq.Consume("feed.created") { var event FeedEvent json.Unmarshal(msg.Body, &event) broadcaster.Broadcast(event) } }
    go

    This design lets us horizontally scale consumers later.

    📺 Frontend: Receiving New Feeds

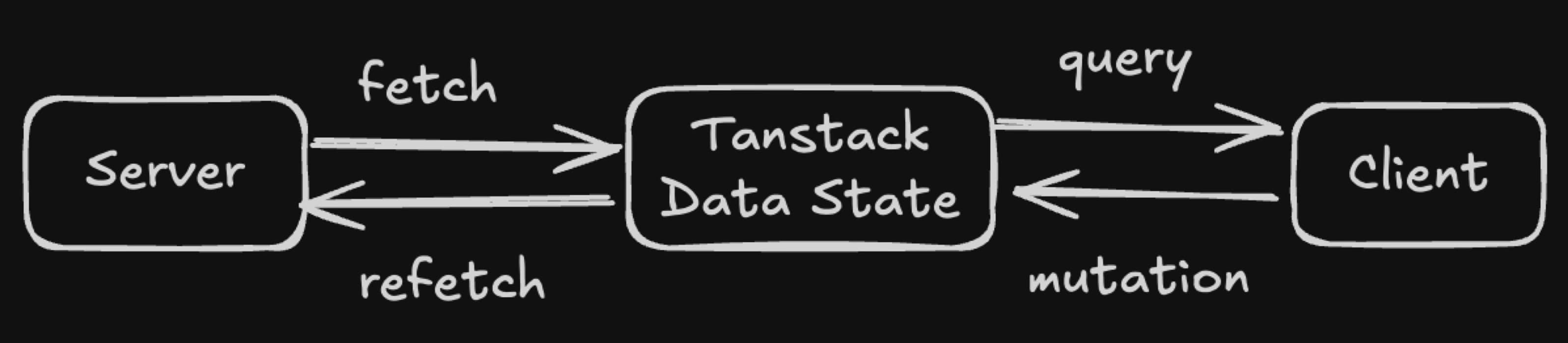

    We are going to use TanStack Query for data fetching, generally this is how TanStack Query works:

    tanstack query in a nutshell

    Using TanStack Query with useInfiniteQuery, we listen for SSE updates:

    const eventSource = new EventSource('http://localhost:8080/events'); eventSource.onmessage = () => setHasNewFeed(true);
    ts

    Then we show a pulse button:

    {hasNewFeed && ( <Button onClick={refetch} className="animate-pulse"> 🔄 New posts available </Button> )}
    ts

    📦 Pagination with Cursor

    We use a base64-encoded composite cursor:

    // backend func EncodeCursor(ts int64, id string) string { return base64.URLEncoding.EncodeToString([]byte(fmt.Sprintf("%d|%s", ts, id))) }
    go

    And a smart SQL query with a tie-breaker:

    WHERE (created_at < $1 OR (created_at = $1 AND id < $2)) ORDER BY created_at DESC, id DESC LIMIT $3
    sql

    This ensures no items are skipped across pages.

    🎯 Why RabbitMQ?

    1. Separation of concerns: API focuses only on DB operations.

    2. Reliability: Even if the broadcaster is down, messages are buffered.

    3. Scalability: Multiple consumers can process events (analytics, push, etc.).

    📡 Why SSE over WebSocket? • Easier to implement • Reconnects out of the box •

    Great for one-way communication like feeds

    WebSocket is great too, but SSE won here for simplicity and performance.

    🧠 What I Learned • Real-time UX requires backend orchestration.

    • Message queues simplify scaling and reliability.
    • Cursor pagination is trickier than you think.
    • Simplicity matters: SSE > WS for one-way streams.

    The Repo

    Here's the repo for this project:

    🧵 Final Thoughts

    This started with just a scrollable list. But like most engineering journeys, solving a UI problem exposed gaps in architecture—and that's where the real fun begins.

    So next time someone asks: “Can we show new posts instantly like Twitter?” — you'll know it's not just a button. It's a system.
