Intro
If you ship a React Native app and want iOS-style communication
notifications (the layout with a circular sender avatar, name, and
thread-ish subtitle), there's no way avoiding using Swift. The main app can
register for push notifications, but modifying what the notification looks
like is the job of a Notification Service Extension
(UNNotificationServiceExtension).
I use OneSignal as the push notification provider.
Here's how it works underneath the hood. It will parse OneSignal's userInfo,
pull a structured communication blob (sender name, ids, optional group name,
avatar URL), download the image, build an
INSendMessageIntent,
donate an
INInteraction,
then call
UNNotificationContent.updating(from:)
so the system renders the communication notification. After that, forward the
request to
OneSignalExtension
so rich media / default processing still runs.
Apple's docs: Modifying content in newly delivered notifications and Handling communication notifications and Focus status updates.

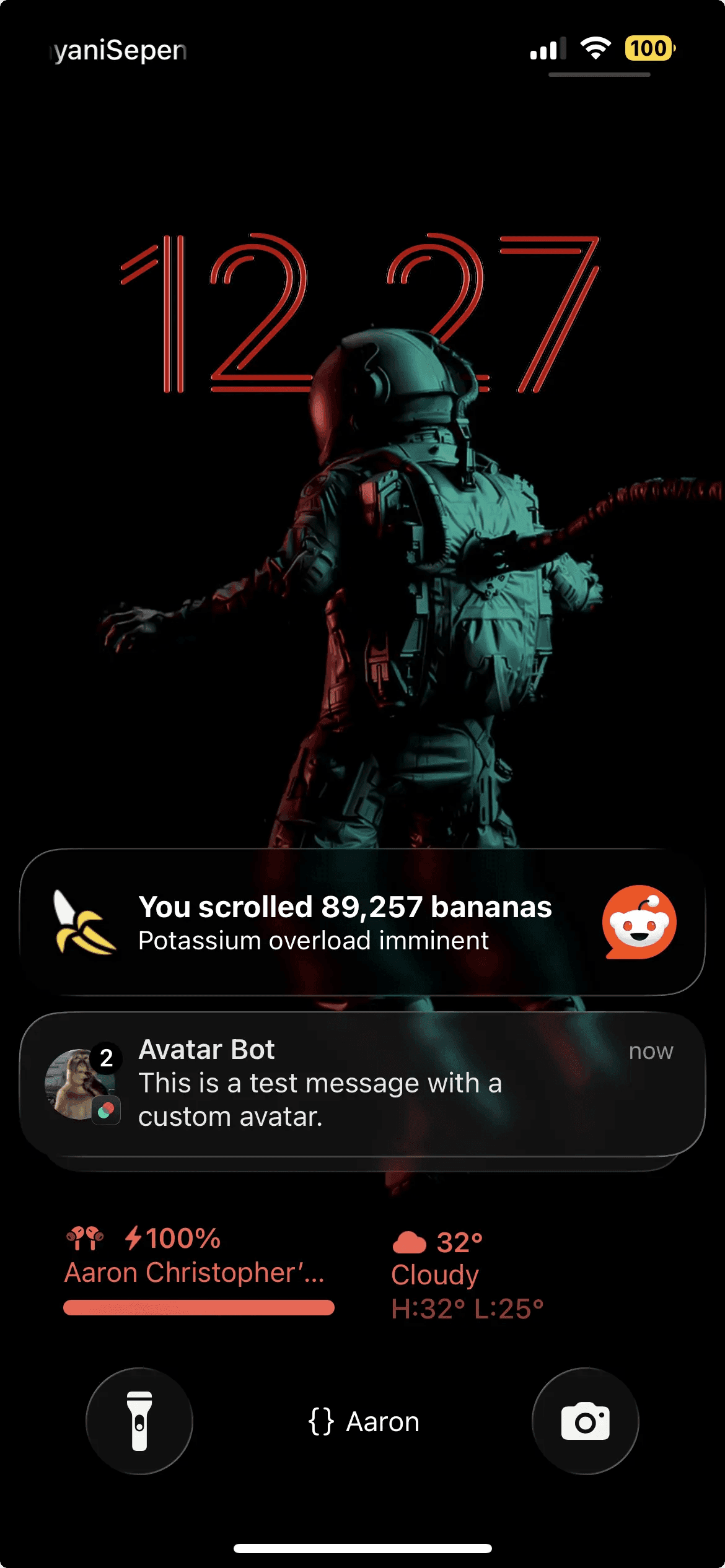

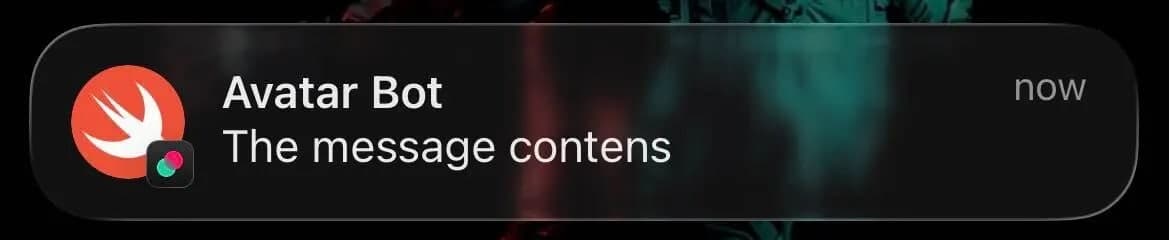

What it looks like
Requirements and payload
We will have to configure some things and set up the payload correctly. You can use different namings for the variable / payload, but I will use the following ones.
-
Mutable content - The APNs payload must request modification (
mutable-content/ OneSignal equivalent) or the NSE never runs. Enable that for the notifications you want to enrich (Apple: mutable-content). -
Structured
userInfo- The Swift below reads:userInfo["custom"] as? [String: Any]→["a"]→["communication"]with fields like
sender_name,sender_uid/sender_id,conversation_id, optionalgroup_name,recipients, andavatar_url. Align your OneSignal additional data so the runtime dictionary matches what you parse. If your provider flattens keys differently, adjust the guards. -
Time constraint -
didReceive(_:withContentHandler:)must finish within roughly 30 seconds. If not, you getserviceExtensionTimeWillExpire(). Avatar download uses a 5s cancel so a stuck CDN does not eat the whole time constraint.
Example: OneSignal REST API
Use env vars or a secrets manager for the API key - never commit real keys boys.
curl --request POST \
--url 'https://api.onesignal.com/notifications' \
--header 'Authorization: Key YOUR_ONESIGNAL_REST_API_KEY' \
--header 'accept: application/json' \
--header 'content-type: application/json' \
--data '{
"app_id": "YOUR_APP_ID",
"target_channel": "push",
"headings": { "en": "The message title" },
"subtitle": { "en": "Design / group line" },
"app_url": "your-app-scheme://circle/1114",
"contents": { "en": "This is a test." },
"data": {
"communication": {
"sender_name": "Avatar Bot",
"sender_uid": "avatar-bot-1",
"conversation_id": "avatar-test-convo",
"avatar_url": "https://example.com/avatars/bot.png"
}
},
"include_subscription_ids": ["YOUR_TEST_SUBSCRIPTION_ID"]
}'bashMap data fields to whatever ends up under custom → a on device for your
OneSignal / SDK version, the Xcode debugger's userInfo print is the source of
truth.
Swift: NotificationService
Extension flow:
- Copy
request.contenttobestAttemptContent. - On iOS 15+, parse
communication, optionally URLSession theavatar_url, validate withUIImage(data:), buildINSendMessageIntentwithINImage(imageData:),setImage(_:forParameterNamed:)on sender /speakableGroupNamewhen needed. INInteraction(intent:response:).donatewithdirection = .incoming.- On success,
try request.content.updating(from: intent), copy back tobestAttemptContent, restoresubtitleif the intent path cleared it, thenOneSignalExtension.didReceiveNotificationExtensionRequestwith yourcontentHandler. - On failure or iOS < 15, skip communication and forward to OneSignal only.
- Group name quirk: For
INSendMessageIntent, a non-nilspeakableGroupNamecan imply a group; if the backend sends too fewrecipients, placeholderINPersonrows pad to two so the group layout behaves. serviceExtensionTimeWillExpire: delegate toOneSignalExtension.serviceExtensionTimeWillExpireRequestwhen possible, then always invokecontentHandlerwith the last good content.
import UserNotifications
import Intents
import OneSignalExtension
import UIKit
import os
class NotificationService: UNNotificationServiceExtension {
private static let log: OSLog = {
let subsystem = Bundle.main.bundleIdentifier ?? "nse"
return OSLog(subsystem: subsystem, category: "NotificationService")
}()
private var contentHandler: ((UNNotificationContent) -> Void)?
private var receivedRequest: UNNotificationRequest?
private var bestAttemptContent: UNMutableNotificationContent?
override func didReceive(_ request: UNNotificationRequest, withContentHandler contentHandler: @escaping (UNNotificationContent) -> Void) {
os_log(.default, log: Self.log, "[NSE] didReceive called, identifier: %{public}@", request.identifier)
self.receivedRequest = request
self.contentHandler = contentHandler
self.bestAttemptContent = (request.content.mutableCopy() as? UNMutableNotificationContent)
if #available(iOS 15.0, *) {
os_log(.default, log: Self.log, "[NSE] iOS 15+, trying communication intent")
tryBuildAndDonateCommunicationIntent(from: request)
} else {
os_log(.default, log: Self.log, "[NSE] iOS < 15, forwarding without communication")
forwardRequestToExtension()
}
}
@available(iOS 15.0, *)
private func tryBuildAndDonateCommunicationIntent(from request: UNNotificationRequest) {
guard let custom = request.content.userInfo["custom"] as? [String: Any],
let a = custom["a"] as? [String: Any],
let communication = a["communication"] as? [String: Any],
let senderName = communication["sender_name"] as? String else {
os_log(.default, log: Self.log, "[NSE] tryBuild: missing custom.a.communication or sender_name, forwarding")
forwardRequestToExtension()
return
}
os_log(.default, log: Self.log, "[NSE] tryBuild: sender_name=%{public}@", senderName)
let avatarUrlString = communication["avatar_url"] as? String
guard let urlString = avatarUrlString, let avatarURL = URL(string: urlString) else {
os_log(.default, log: Self.log, "[NSE] tryBuild: no avatar_url or invalid URL, donating with nil avatar")
donateIntent(from: request, avatarData: nil)
return
}
os_log(.default, log: Self.log, "[NSE] tryBuild: downloading avatar from %{public}@", urlString)
let session = URLSession(configuration: .default)
let task = session.dataTask(with: avatarURL) { [weak self] data, _, error in
if let err = error {
os_log(.error, log: Self.log, "[NSE] avatar download error: %{public}@", String(describing: err))
}
let imageData: Data? = {
guard let data = data, !data.isEmpty, UIImage(data: data) != nil else {
os_log(.default, log: Self.log, "[NSE] avatar: no data or invalid image, bytes=%{public}d", data?.count ?? 0)
return nil
}
os_log(.default, log: Self.log, "[NSE] avatar: got valid image, bytes=%{public}d", data.count)
return data
}()
self?.donateIntent(from: request, avatarData: imageData)
}
task.resume()
DispatchQueue.global().asyncAfter(deadline: .now() + 5) {
if task.state == .running {
os_log(.default, log: Self.log, "[NSE] avatar download timeout, cancelling")
task.cancel()
}
}
}
@available(iOS 15.0, *)
private func donateIntent(from request: UNNotificationRequest, avatarData: Data?) {
os_log(.default, log: Self.log, "[NSE] donateIntent: avatarData bytes=%{public}d", avatarData?.count ?? 0)
guard let intent = genMessageIntent(from: request, avatarData: avatarData) else {
os_log(.error, log: Self.log, "[NSE] donateIntent: genMessageIntent returned nil")
forwardRequestToExtension()
return
}
os_log(.default, log: Self.log, "[NSE] donateIntent: donating interaction")
let interaction = INInteraction(intent: intent, response: nil)
interaction.direction = .incoming
interaction.donate { [weak self] error in
if let err = error {
os_log(.error, log: Self.log, "[NSE] donate failed: %{public}@", String(describing: err))
} else {
os_log(.default, log: Self.log, "[NSE] donate succeeded")
}
guard let self = self, error == nil else {
self?.forwardRequestToExtension()
return
}
do {
let content = try request.content.updating(from: intent)
self.bestAttemptContent = (content.mutableCopy() as? UNMutableNotificationContent)
let originalSubtitle = request.content.subtitle
if !originalSubtitle.isEmpty {
self.bestAttemptContent?.subtitle = originalSubtitle
os_log(.default, log: Self.log, "[NSE] Restored original subtitle: %{public}@", originalSubtitle)
}
os_log(.default, log: Self.log, "[NSE] content updated from intent, forwarding")
self.forwardRequestToExtension()
} catch {
os_log(.error, log: Self.log, "[NSE] updating content from intent failed: %{public}@", String(describing: error))
self.forwardRequestToExtension()
}
}
}
@available(iOS 15.0, *)
private func genMessageIntent(from request: UNNotificationRequest, avatarData: Data? = nil) -> INSendMessageIntent? {
guard let custom = request.content.userInfo["custom"] as? [String: Any],
let a = custom["a"] as? [String: Any],
let communication = a["communication"] as? [String: Any],
let senderName = communication["sender_name"] as? String else {
os_log(.default, log: Self.log, "[NSE] genMessageIntent: guard failed, nil intent")
return nil
}
let senderId = communication["sender_uid"] as? String ?? communication["sender_id"] as? String ?? ""
let conversationId = communication["conversation_id"] as? String ?? ""
let groupName = communication["group_name"] as? String
let fallbackGroupName = extractSubtitle(from: request)
let groupNameToUse = groupName ?? fallbackGroupName
let recipientIds = communication["recipients"] as? [String]
os_log(.default, log: Self.log, "[NSE] genMessageIntent: senderId=%{public}@ conversationId=%{public}@ recipientCount=%{public}d", senderId, conversationId, recipientIds?.count ?? 0)
let handle = INPersonHandle(value: senderId, type: .unknown)
var avatar: INImage? = nil
if let data = avatarData, !data.isEmpty {
avatar = INImage(imageData: data)
os_log(.default, log: Self.log, "[NSE] genMessageIntent: using downloaded avatar")
}
let sender = INPerson(
personHandle: handle,
nameComponents: nil,
displayName: senderName,
image: avatar,
contactIdentifier: nil,
customIdentifier: senderId,
isMe: false,
suggestionType: .none
)
var recipients: [INPerson] = recipientIds?.map { recipientId in
INPerson(
personHandle: INPersonHandle(value: recipientId, type: .unknown),
nameComponents: nil,
displayName: nil,
image: nil,
contactIdentifier: nil,
customIdentifier: recipientId,
isMe: false,
suggestionType: .none
)
} ?? []
if groupNameToUse != nil && recipients.count < 2 {
let needed = 2 - recipients.count
if needed > 0 {
for index in 1...needed {
let placeholderId = "placeholder-\(index)"
recipients.append(
INPerson(
personHandle: INPersonHandle(value: placeholderId, type: .unknown),
nameComponents: nil,
displayName: nil,
image: nil,
contactIdentifier: nil,
customIdentifier: placeholderId,
isMe: false,
suggestionType: .none
)
)
}
}
}
let intent = INSendMessageIntent(
recipients: recipients,
outgoingMessageType: .outgoingMessageText,
content: request.content.body,
speakableGroupName: groupNameToUse != nil ? INSpeakableString(spokenPhrase: groupNameToUse!) : nil,
conversationIdentifier: conversationId,
serviceName: nil,
sender: sender,
attachments: nil
)
if let avatar = avatar {
intent.setImage(avatar, forParameterNamed: \.sender)
intent.setImage(avatar, forParameterNamed: \.speakableGroupName)
os_log(.default, log: Self.log, "[NSE] genMessageIntent: setImage for sender")
} else {
os_log(.default, log: Self.log, "[NSE] genMessageIntent: no avatar image set")
}
return intent
}
private func extractSubtitle(from request: UNNotificationRequest) -> String? {
let subtitle = request.content.subtitle
if !subtitle.isEmpty {
return subtitle
}
let userInfo = request.content.userInfo
if let aps = userInfo["aps"] as? [String: Any],
let alert = aps["alert"] as? [String: Any],
let apsSubtitle = alert["subtitle"] as? String,
!apsSubtitle.isEmpty {
return apsSubtitle
}
if let custom = userInfo["custom"] as? [String: Any],
let a = custom["a"] as? [String: Any],
let customSubtitle = a["subtitle"] as? String,
!customSubtitle.isEmpty {
return customSubtitle
}
if let osData = userInfo["os_data"] as? [String: Any],
let osSubtitle = osData["subtitle"] as? String,
!osSubtitle.isEmpty {
return osSubtitle
}
return nil
}
private func forwardRequestToExtension() {
os_log(.default, log: Self.log, "[NSE] forwardRequestToExtension")
guard let receivedRequest = receivedRequest,
let bestAttemptContent = bestAttemptContent else {
os_log(.error, log: Self.log, "[NSE] forwardRequestToExtension: missing request or content")
return
}
OneSignalExtension.didReceiveNotificationExtensionRequest(
receivedRequest,
with: bestAttemptContent,
withContentHandler: contentHandler
)
os_log(.default, log: Self.log, "[NSE] forwardRequestToExtension: done")
}
override func serviceExtensionTimeWillExpire() {
os_log(.default, log: Self.log, "[NSE] serviceExtensionTimeWillExpire")
guard let contentHandler = contentHandler,
let bestAttemptContent = bestAttemptContent else { return }
if let receivedRequest = receivedRequest {
OneSignalExtension.serviceExtensionTimeWillExpireRequest(receivedRequest, with: bestAttemptContent)
}
contentHandler(bestAttemptContent)
}
}swiftClosing
React Native stays responsible for subscription and in-app UX, but the NSE
is where you bridge Intents + UserNotifications + your provider's
extension hooks. Debug with Console.app filtered on your extension's
subsystem, print userInfo once, and align payload keys with the guards
above. And now you would have a beautiful iOS Notification!
References
